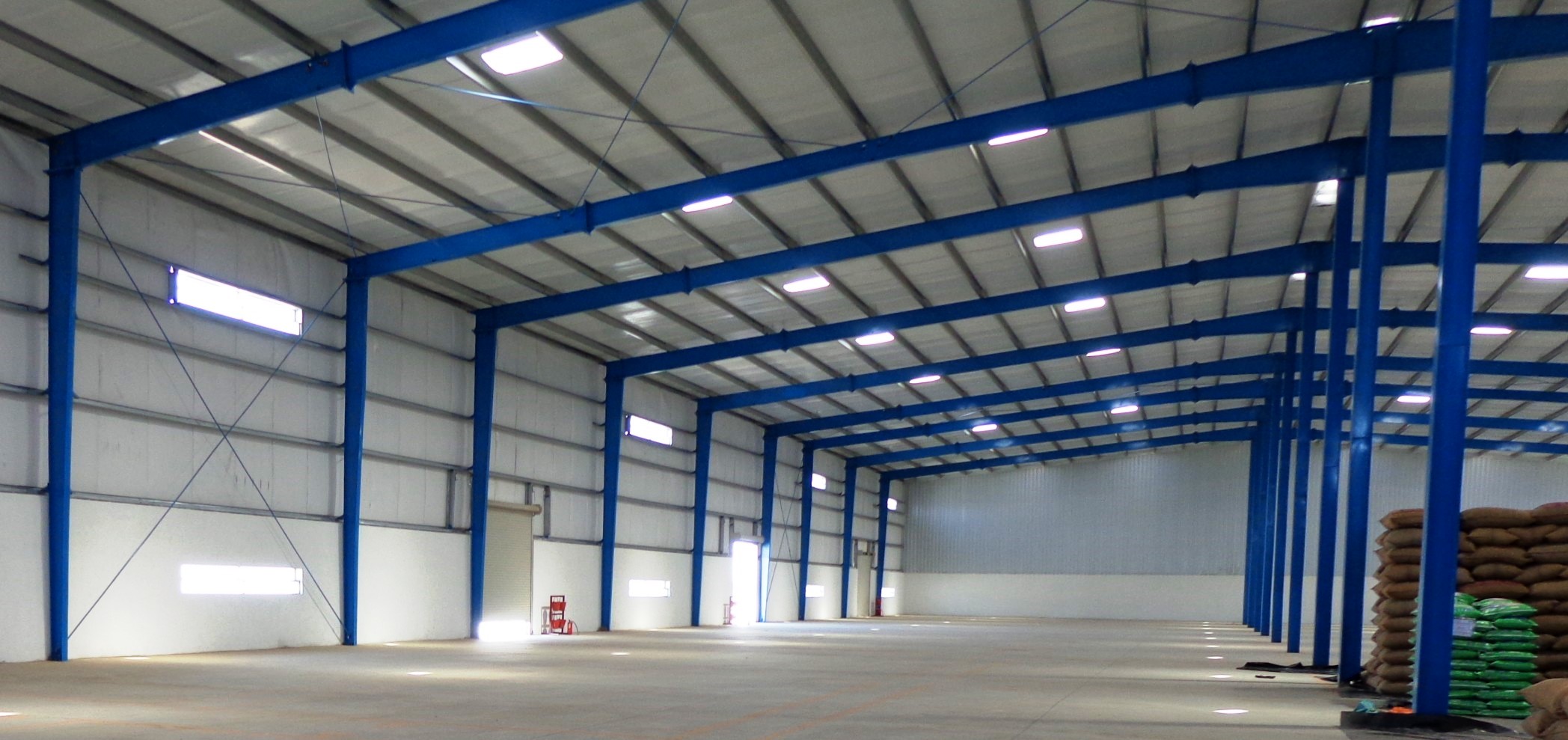

Build Matt Ltd is one of the leading companies based in Uganda with more than 20 years of experience in Prefab building,Steel fabrications & aluminium works. We are engaged in many prefab buildings projects of same works. Prefab Warehouses are an essential part of any organization. Prefabricated warehouse is the focal area for all operational movements. A prefab warehouse must be strong and durable. Prefabricated Steel is an exceptionally tough metal. It can withstand outside weights and shield the structure from falling even in troublesome climate conditions. For a prefabricated warehouse work, you have to have a strong steel structure and material. With prefab steel structures, you can be certain that your warehouse centre won't be influenced by any measure of outside effect. For the external and internal strength of a warehouse steel fabrication work is to be done proficiently. Being as a leading prefabricated warehouse contractor, we provide top quality steel works to our clients for prefab home, prefab factory shed, steel structures that tend to last longer with the best satisfaction.

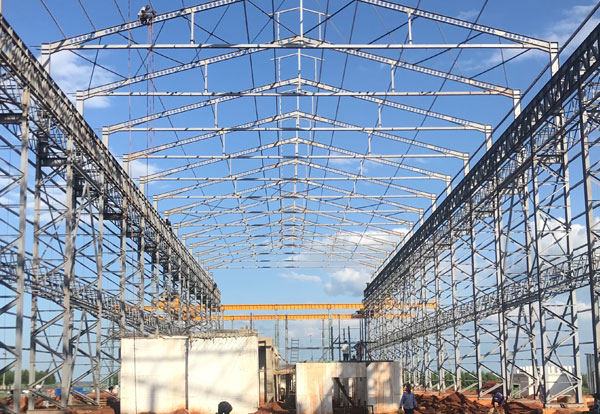

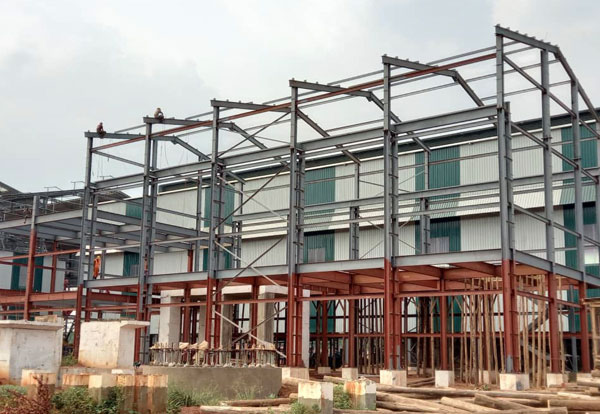

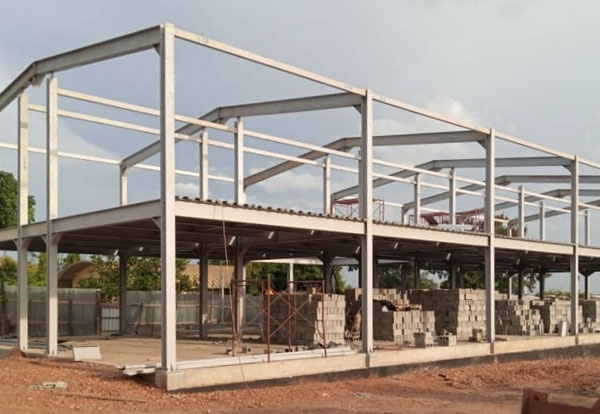

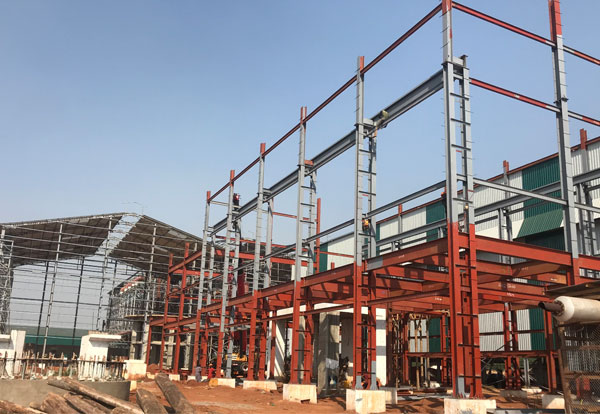

Primary Framing (Main Steel Frame)

Primary Framing (Main Frame)

Steel structural system is the main load carrying and support members of s pre-engineering building. The shape and size vary based on application and requirements.

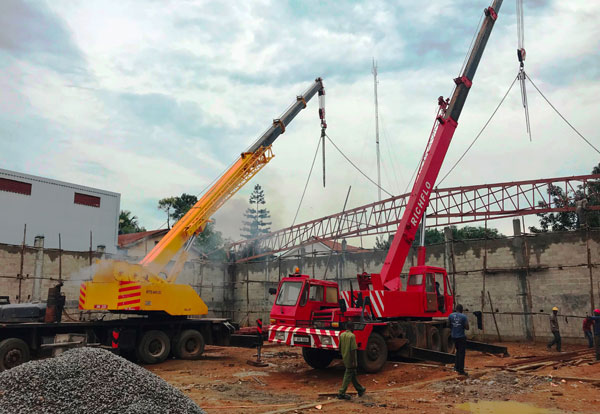

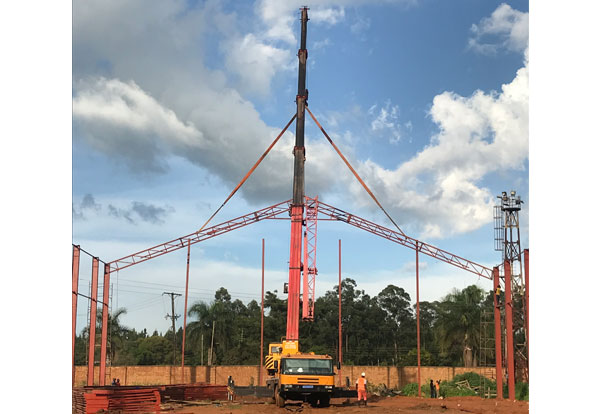

The main steel frame members are the main load carrying member of a structural system which include columns, end wall posts, rafters and other main support members.

All structure steel sections and welded plate members shall be designed in accordance with the applicable section, relating to design requirements and allowable stresses, of the latest edition of the American institute of Steel Construction Specification for the design, Fabrication and Erection of the Structural Steel for Buildings.

Secondary Framing

Secondary Framing

Purlins, girts and eave struts are cold formed steel members which have a minimum yield strength of 345 MPa (50,000 psi) and will conform to the physical specifcations of ASTM 572 (Grade 50) or ASTM A653 (Grade 50) or equivalent.

PURLINS & GIRTS

Purlins and girts are roll formed Z sections, 200 mm deep with 64 mm ages

Shall have a 16 mm stiffening lip formed at 45? to the ?ange. They are Supported on columns, rafters or building walls. They can be lapped and Nested at the supports which create a continuous beam confuguration.

They Are placed on the roof and perimeter of the building. Hence they serve as a Support to the roof sheeting and wall cladding.

PURLINS & GIRTS
ROD BRACING

ROD BRACING

This member is designed to ensure the stability of building against forces in The longitudinal and lateral direction due to wind, cranes, and earthquakes. It is made of round bar which is forged into a rod terminal and this arrangement is then fixed on a structure using a hill side washer, nut washer and nut.

ANGLE BRACING

Angle bracing shall have minimum yield strength of 250MPa(36,000 psi) and will conform to the physical specification of ASTM A-36 or equivalent.

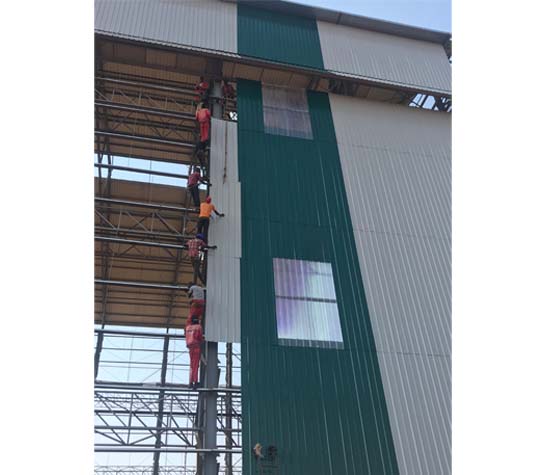

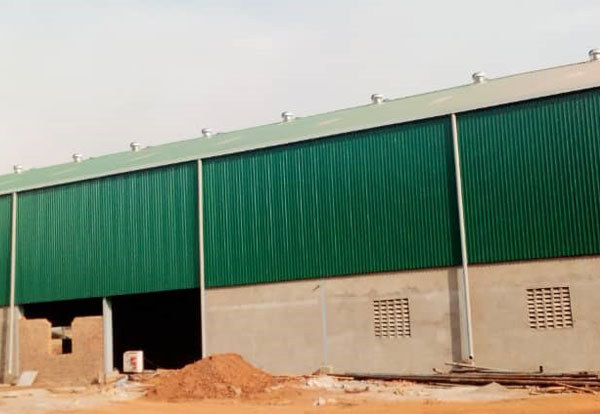

Cladding System

Cladding System

Lotus roof sheet are standard 0.3 mm to 0.6 mm thick and have minimum yield strength of 345 MPa. Steel panels are hot dipped and galvanized with zinc or zin Alumimium coating. Galvanized materials conform to G90 for 275 grams per square meter according to ASTM A653. Zinc-Alumimium coated materials conform to AZ150 according to ASTM A792.

Cladding System
Cladding System

Lotus roof sheet are prepared with a multilayered coating system to ensure long life and optimum coating adherence. The base material is pretreated, before applying a corrosion resistant primer and top coat. The combined thickness of the painted film is 25 microns on the front side and 12 microns on the reverse side.

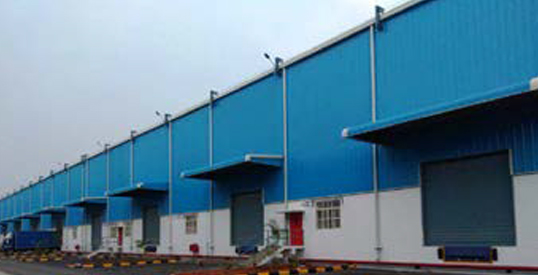

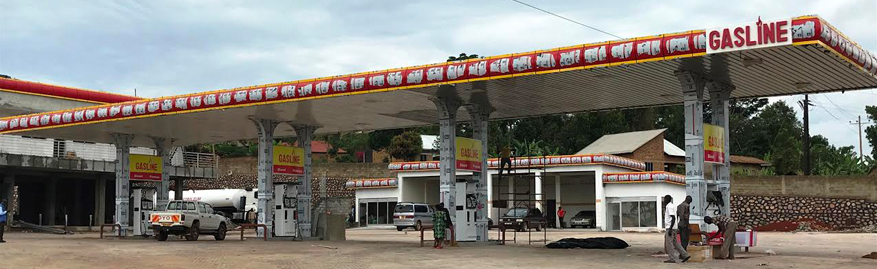

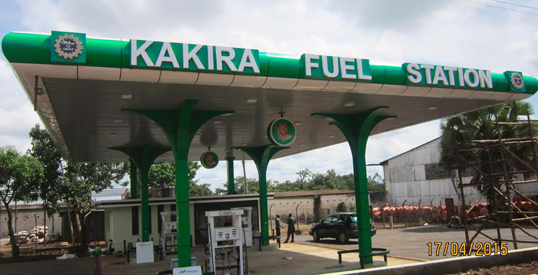

Fascias and Canopy

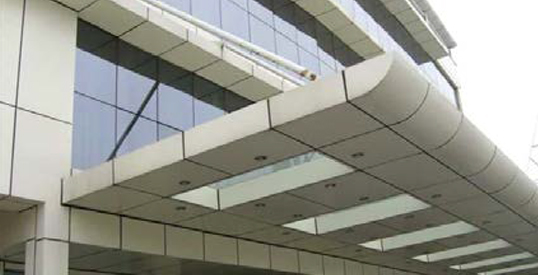

Fascias and Canopies
Fascias and Canopies

Lotus roof sheet standard steel panels are 0.3 mm to 0.6 mm thick and have minimum yield strength of 345 MPa. Steel panels are hot dipped and galvanized with zinc or zin Alumimium coating. Galvanized materials conform to G90 for 275 grams per square meter according to ASTM A653. Zinc-Alumimium coated materials conform to AZ150 according to ASTM A792.

Fascias and Canopies
Fascias and Canopies

Mezzanine and Staircase

Double Flight Staircase

Double Flight Staircase
Elevation: Single Flight Staircase with Mid-landing
Plan: Single Flight Staircase with Mid-landing
Elevation: Single Flight Staircase with Mid-landing
Plan: Single Flight Staircase with Mid-landing
Elevation: Double Flight Staircase with Mid-landing
Plan: Single Flight Staircase with Mid-landing

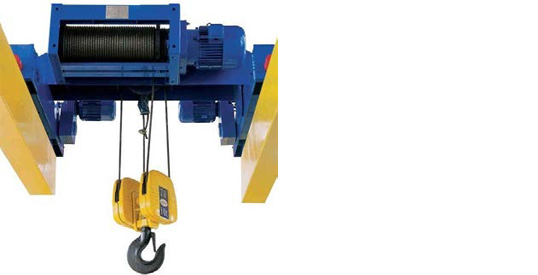

Crane Beams

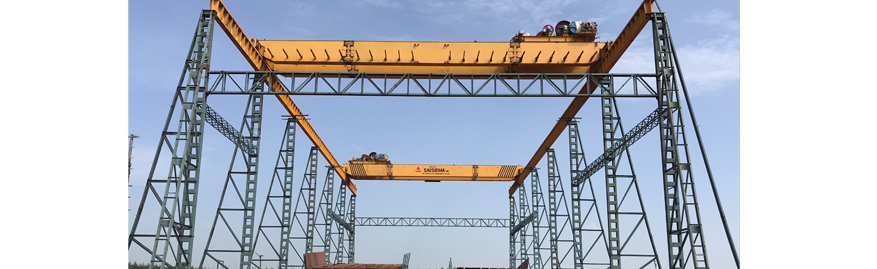

Top Running Carne Along Building Lenght

Top Running Carne Along Building Lenght

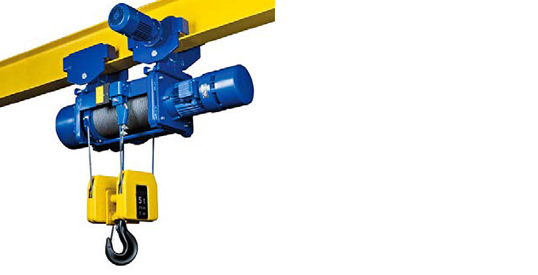

Underhung Crane

Underhung Crane

Jib Crane and Monorail Crane

jib Crane and Monorail Crane

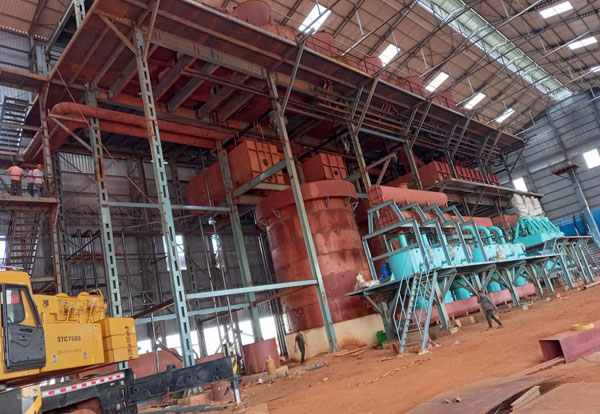

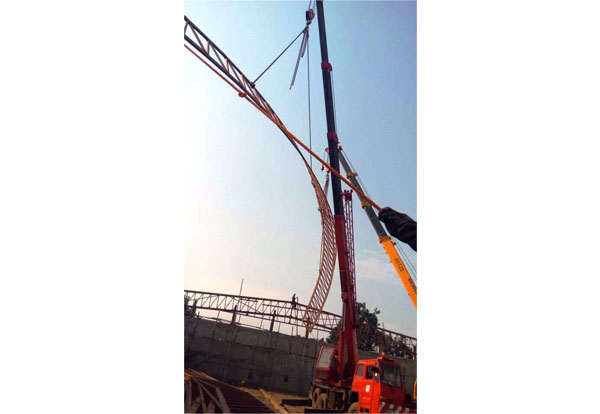

Fabrication

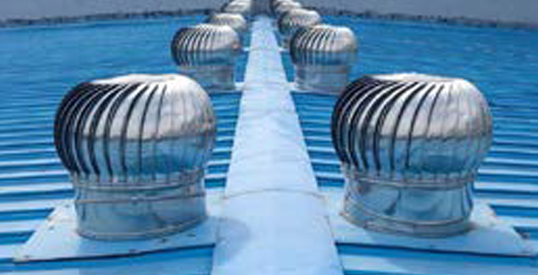

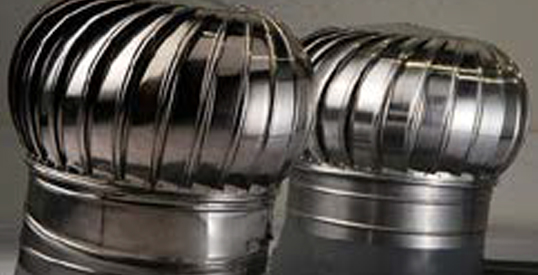

Turbo Vents

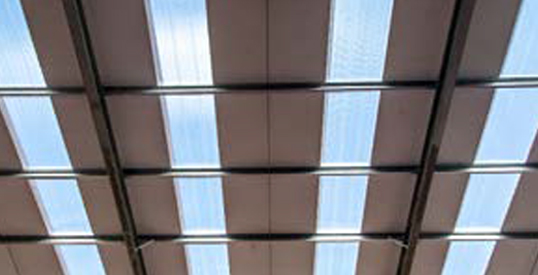

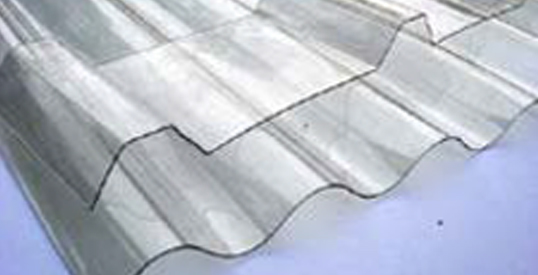

Skylights

Doors and Windows Office Partition

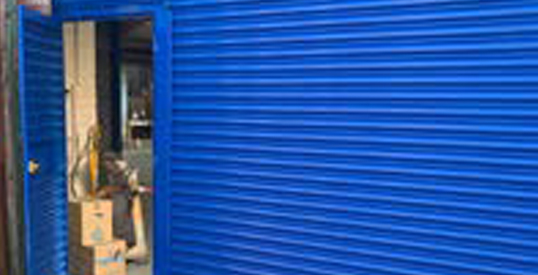

Rolling Shutter
